How to Estimate the Cost of a Commercial EV Charging Station?



The price of a commercial EV charging station can differ a lot. Usually, Level 2 chargers cost $2,000 to $10,000. Fast chargers are more expensive, costing $30,000 to $75,000. Other costs, like electrical work and site prep, add more. Total costs can be $15,000 to $100,000 for each location. These stations help meet the need for EV chargers. They also make properties more valuable and eco-friendly. Knowing these costs helps you plan better and avoid surprises.

Key Takeaways

Learn how much EV chargers cost. Level 2 chargers are $2,000 to $10,000. Fast chargers cost $30,000 to $75,000.

Check your electrical system before installing. Fixing it can cost $10,000 to $40,000. Make sure your system is ready.

Pick a good spot for your charger. City areas might cost more because of space and work needs.

Look into rebates and incentives. Federal and state programs can help lower your costs.

Plan for upkeep. Maintenance and repairs cost $500 to $2,500 each year, depending on the charger.

Factors That Affect the Cost of a Commercial EV Charging Station
Electrical Setup

The state of your electrical system affects costs a lot. If upgrades are needed, like adding power or transformers, costs rise. These upgrades can cost $10,000 to $40,000, depending on the work. Public Level 2 chargers cost about $3,500 per connector. DC fast chargers cost between $38,000 and $90,000 per connector. Checking your electrical system first can save money later.
The distance from the power source to the charger matters too. Longer distances need more wires and digging, which costs more. Planning ahead helps avoid surprise expenses and delays.

Location and Site Work

Where you put your EV charging station changes the cost. Urban areas cost more because space is tight and work is harder. Site work costs depend on how much needs to be done. For example, costs go up if the power source is far or upgrades are needed.
If the site needs big changes, like leveling ground or clearing obstacles, costs increase. Getting permits in some places can also cost more and take longer. Picking the right spot and planning well can help control costs.

Permits and Rules

Getting permits and following rules is very important. Local rules and permits can change costs and timelines. Cities often have stricter rules, which can raise costs. You might also need to follow zoning, environmental, and accessibility rules.
Not following these rules can lead to fines or delays. Working with experts who know the rules can help. Good planning and following rules make the process easier and save money.

Installation Complexity

How hard it is to install affects the cost a lot. Many things can make the process harder and more expensive.
A big challenge is the electrical work needed. Adding EV chargers often means upgrading the electrical system. This could include adding transformers, bigger panels, or longer power lines. These jobs need skilled workers and special tools, which cost more. For instance, an 18-unit condo in California used a special EV program to handle high costs for tricky installations.
Getting permits also makes things harder. Each city has its own rules for EV charger setups. Following these rules takes time and may need experts to help. Sometimes, waiting for permits can delay the project and raise costs.

Tip: Hire skilled contractors who know local rules to avoid mistakes.
Your site’s layout also matters. Uneven ground, small spaces, or hidden utilities make things tougher. These problems might need extra work like digging or leveling, which adds to the cost.

Commercial EV Charging Station Installation Costs

Labor and Contractor Fees

Labor costs are a big part of installing EV chargers. Skilled electricians and contractors are needed for wiring, upgrades, and setup. These fees range from $3,000 to $20,000 or more. Complex projects, like DC fast chargers, need advanced work, which costs extra.
Permits and inspections also add to the total cost. Permits cost $100 to $1,000, and inspections range from $500 to $2,000. Hiring experienced workers helps follow local rules and avoid mistakes.
Tip: Get quotes from several contractors to find the best deal.

Materials and Equipment

The materials and equipment you pick affect the total cost. Chargers alone cost $2,000 to $50,000, depending on type and power. Level 2 chargers are cheaper, but DC fast chargers cost more and charge faster.
Upgrading electrical systems adds $10,000 to $40,000 to your budget. Systems for managing chargers remotely cost $1,000 to $10,000.

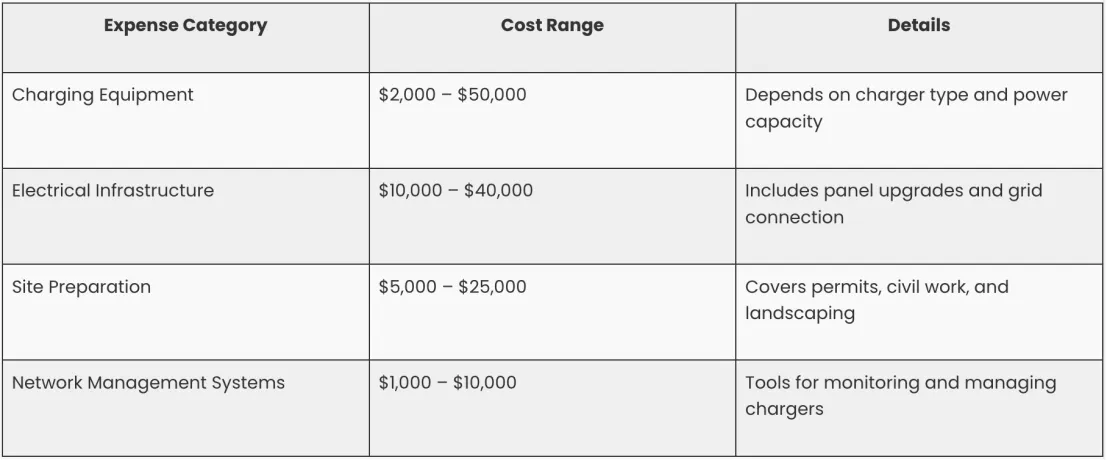

Here’s a simple cost breakdown:

Site Preparation and Modifications

Preparing the site is key for EV charger installation. Tasks like digging, pouring concrete, and painting parking lines cost $5,000 to $25,000. Big changes, like leveling ground or upgrading utilities, can cost $50,000 or more.
You might also need to add conduits, connectors, and signs for visitors. Electrical upgrades, like stronger transformers or circuits, add $10,000 to $40,000.

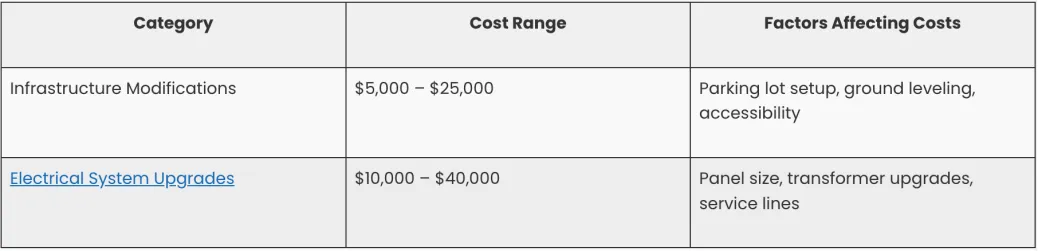

Here’s a quick summary of site prep costs:

Planning ahead helps make installation easier and avoids surprise costs.

Incentives and Rebates for Commercial EV Charging Stations
Federal Incentives

Federal programs can help lower the cost of EV chargers. The Alternative Fuel Vehicle Refueling Property Credit gives financial help. Starting January 1, 2023, it offers a 6% refund, up to $100,000 per charging port. If your business meets wage and training rules, you can get a 30% refund with the same limit.
Federal tax credits can also cover 30% of installation costs, up to $30,000 per site. These programs encourage businesses to add EV chargers. Grants from groups like the Department of Energy’s Clean Cities Coalition Network also support new charging ideas.

State and Local Incentives

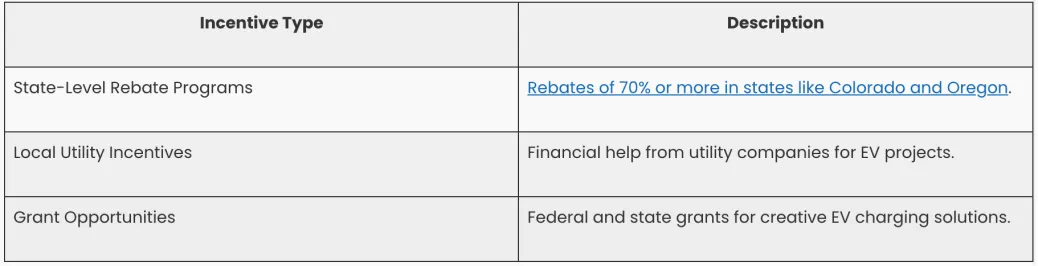

States and cities offer rebates to make EV chargers more affordable. Some states, like Colorado, New Jersey, and Oregon, cover 70% or more of costs. For example, Los Angeles gives up to $125,000 for each DC fast charger.
These programs include grants, tax credits, or rebates. They vary by location, so research your area for savings. Finding the right program can save your business thousands of dollars.

Finding and Applying for Incentives

Applying for incentives takes planning and research. First, check if you qualify for federal tax credits like the Alternative Fuel Vehicle Refueling Property Credit. See if your business meets the rules for the 30% refund.
Next, look into state and local programs. Many states offer rebates or tax credits to cut costs further. Utility companies may also have extra incentives for EV chargers.
Finally, gather all needed documents and apply quickly. Many programs work on a first-come, first-served basis. Staying organized helps you get the most savings.
Tip: Use online tools or talk to experts to find all available incentives for your project.

Maintenance Costs for a Commercial EV Charging Station

Routine Maintenance and Inspections

Regular maintenance keeps your EV charging station working well. Tasks include cleaning, checking connectors, and testing parts. Basic maintenance costs $400 to $1,000 yearly for Level 2 chargers. For DC fast chargers, it costs $1,000 to $2,000 or more. Inspections cost $500 to $2,000 each year. These checks find problems early and avoid big repair bills.
On average, maintenance costs range from $500 to $2,500 yearly. This depends on the charger type and how often it’s used. Clean and working chargers reduce downtime and keep users happy.

Repairs and Replacements

Over time, chargers may need repairs or new parts. Common problems include broken connectors, bad wiring, or software issues. Repair costs vary but are about $0.03 per kWh for newer systems. Older systems cost around $0.15 per kWh.
Some businesses save money with EV chargers. For example, Bolthouse Farms cut repair costs by 80% compared to older systems. Regular care lowers repair needs and keeps chargers cost-friendly.

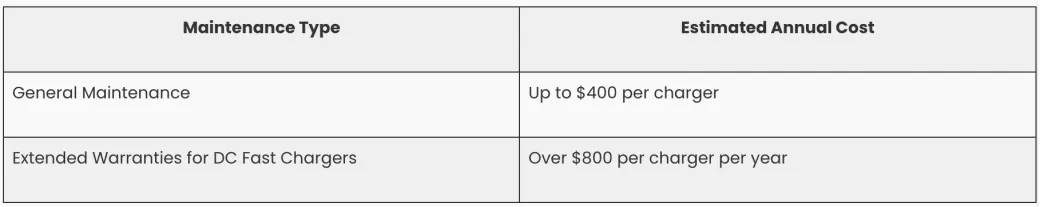

Charger upkeep costs about $400 yearly per unit.

DC fast charger warranties cost over $800 yearly.

Maintenance includes cleaning and checking parts.

Service Contracts and Maintenance Plans

Service contracts make maintenance easier. They combine tasks like repairs, updates, and safety checks into one plan. These plans also include software updates and rule compliance. Costs range from $500 to $3,000 yearly per station.

Service plans help chargers follow rules and work smoothly. Seasonal checks and updates make equipment last longer.

Tip: Look at different service plans to find the best price and features for your needs.

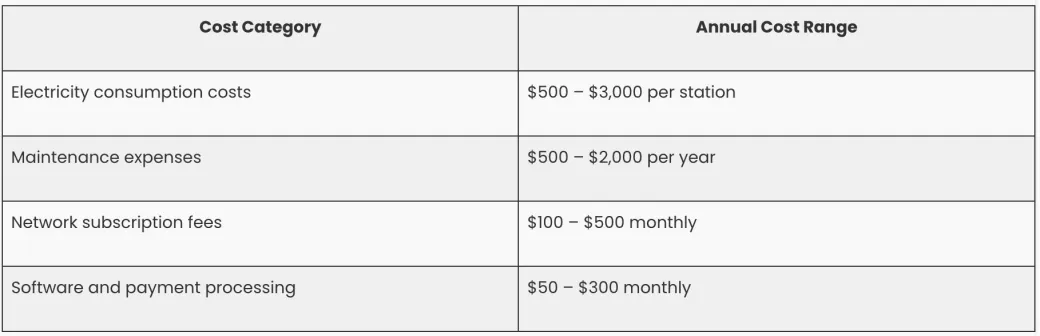

Figuring out the cost of a commercial EV charging station means looking at three parts: equipment, setup, and upkeep. For instance, putting in Level 2 chargers costs $5,000 to $15,000 each. DC fast chargers are pricier, costing $40,000 to $100,000. Keeping chargers running, like paying for electricity and network fees, costs $500 to $3,000 yearly.
To save money, check for rebates and incentives. Federal and state programs can lower costs a lot. Hiring experts helps you follow rules and avoid expensive errors.
To plan your budget well, follow these steps:

• 1. Check your site’s power system and layout.
• 2. Pick chargers that fit your users’ needs.
• 3. Use tools to manage energy and cut costs.

Tip: Try online calculators to estimate costs and plan for future EV needs.
