7/11/22KW AC Charger

QS-Q23 series is composed of main control unit, charging box. It’s resistant to vibration and has complete protection functions, the protection class is IP65, which covers a small area, meets the installation and use of indoor and outdoor environments, and provides AC power for electric vehicles with on-board charger.

Features

1. Perfect charging protection such as input over/under voltage, connection abnormality, emergency stop

2. Compatibility with GBT/type 2/type 1 multiple standards

3. Modular design, flexible configuration and easy maintenance

4. High degree of protection and wide voltage output

5. 4G/WIFI access for advanced software functions

6. Support IEC 61851 standard charging

Application Scenarios

Public Commerical EV Charger

Public Commerical EV Charger

Application of logistics company

Application of logistics company

Application of Real estate property

Application of Real estate property

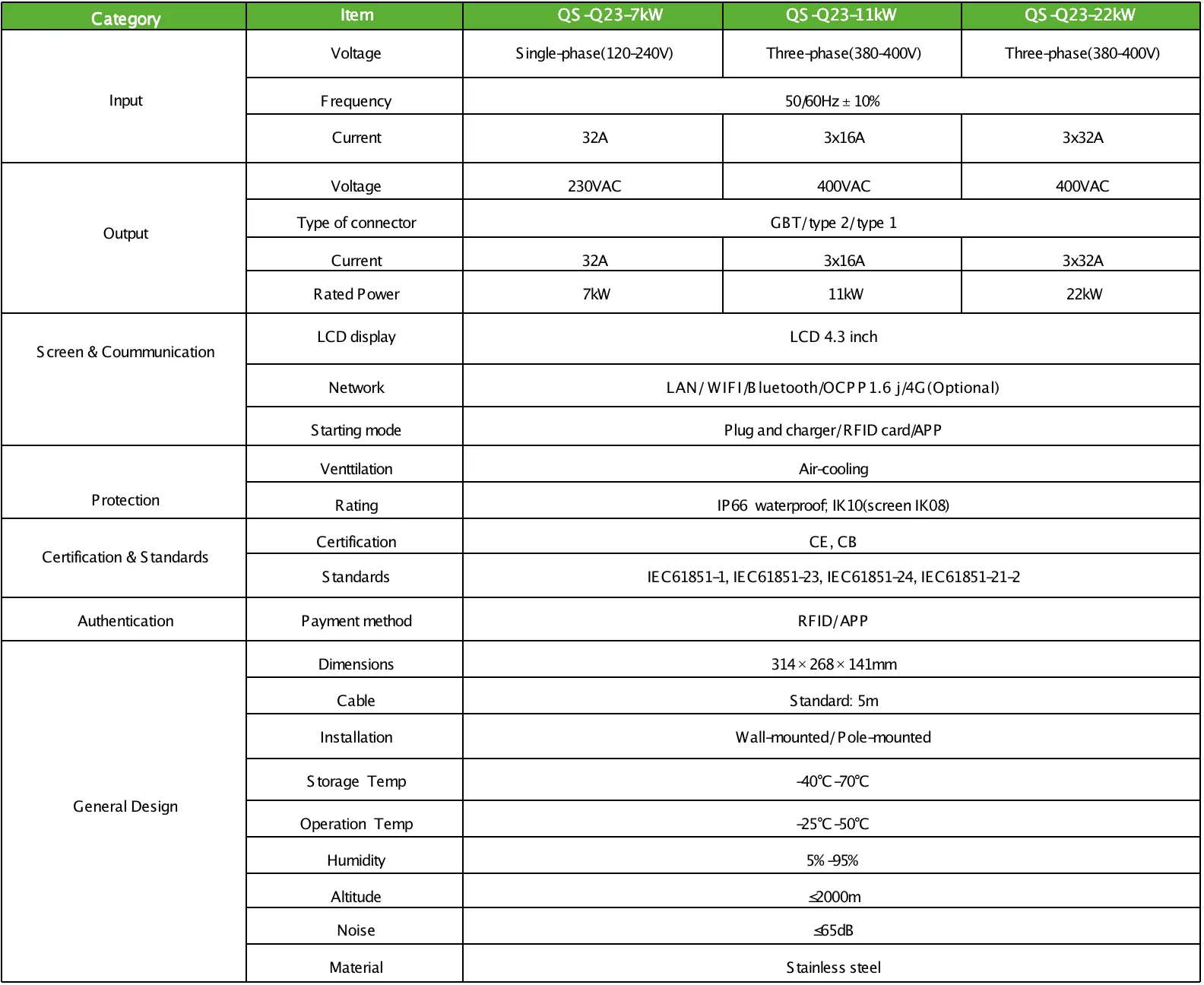

Technical parameter

7/11/22KW AC Charger table

Project Cases

Jiangxi EV charging project

Jiangxi EV charging project

Guangzhou tower EV charging project

Guangzhou tower EV charging project

South Africa EV charging project

South Africa EV charging project
